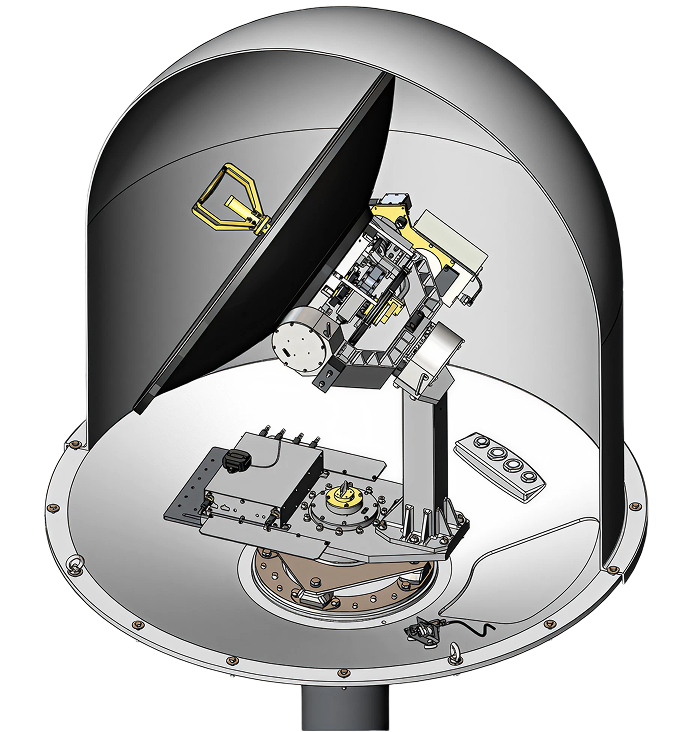

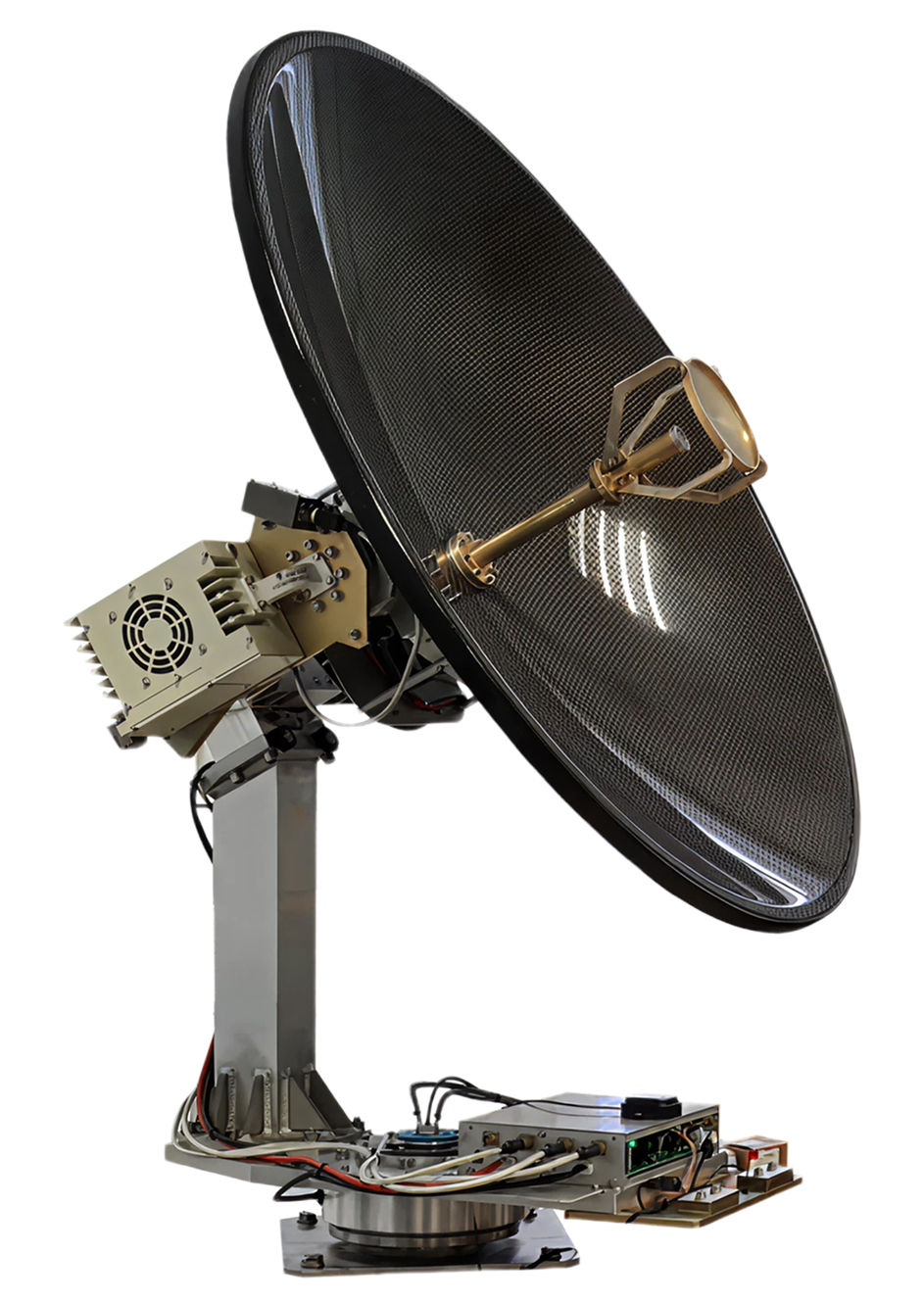

Ku-Band Automated Maritime Satellite Communication Station

The station operates in pitching conditions and is a fully autonomous system that does not require interaction with the navigation system of the vessel.

Ku-Band Automated Maritime Satellite Communication Station by ISBC "SMSA-1-Kuv1" is intended for use as part of the ship’s communication and control complexes as a VSAT terminal and is used for data, voice, video, and Internet access via foreign geostationary communication satellites.

Back

Antenna Type

Cassegrain antenna

Antenna Diameter

1.04 m

Frequency range, Tx/Rx

10.70-12,75 / 13.75-14,5 GHz

Gain Tx/Rx

41,0 / 39,8 dB

Polarization

Linear

Antenna Travel Type

Triaxial – azimuth, elevation, cross-elevation

Azimuth Travel Range

Unlimited

Elevation Travel Range

-15 …+110 deg

The range of movement in the cross-elevation

+/- 34 deg

Maximum stabilization error

0.2 deg

Power Supply

AC 190 - 242 V. 49 - 51 Hz

Dimensions

Cover diameter 144 m, height 1.54 m

Weight

120 kg with Antenna Cover

Specifications

Operational Temperature

-40 … +50 deg. C

Relative humidity at +40 deg C

to 100%

Icing

up to 20 kg / m2

Rain

up to 100 mmph

Wind Loading, Operational/Survival

to 45 mps

Maximum roll angle

+/- 25 degrees with a period of 8 - 12 seconds

Maximum pitch angle

+/- 15 degrees with a period of 6 - 12 seconds

Yaw

+/- 1+/- 5 degrees with a period
of 12 - 20 seconds

Service conditions
